Or if the top and bottom outlets of a duplex receptacle are powered by two different circuits the hot tab and possibly the neutral tab will be removed. Twist the three wires together clockwise and screw on a wire cap then connect the short wire back to the switch.
What Is The Proper And Safe Wiring To Two Lights With 2
Separating an outlet from a light switch. If one half of a duplex outlet is controlled by a wall switch then the hot tab and possibly the neutral tab will be broken off. Just make a schematic of everything involved and it gives you an idea how to configure i would draw two possibilities but the format doesnt allow drawings like that. So if something is plugged into the top plug of either outlet it will lose power if the light switch is turned off. The light switch controls the overhead light as well as one plug within each of the two outlets. How to wire an outlet from a switch. The black wire is the power in ac.

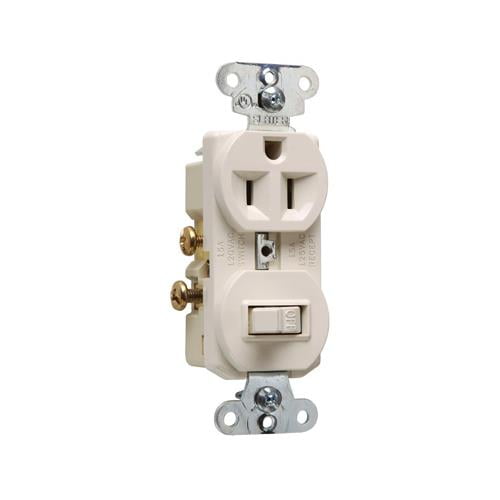

Then you can wire from it to one side of the light switch and wire the black wire going to the light to the other side of the switch. Grab the tab with the end of a pliers or your stripping tool and. The black wire goes to the small blade of the outlet. There are boxes and covers designed to let you wire a light switch and outlet in the same box. This electrical wiring question came from. Power comes from the light to the switch and i want to wire an outlet after the switch.
Disconnect the live wire from the switch and splice it together with the black wire going to your new outlet adding a 6 inch length of spare black wire of the same gauge to make a pigtail. In other words if the hot line that provides power to the light or whatever the switch powers goes into the light fixture first and then into the light switch box you wont be able to use a switchoutlet combo. Then connect the end of the new wire to one. Turn the power back on and make sure that the outlet works properly by plugging in a lamp and checking to see that the light switch turns the lamp on and off. The former scenario is pretty rare in most houses but always check to make sure. How do i wire an outlet from a switch.
Your choices are to run a separate line from the electrical box to the outlet or run a separate line from the hot lines in the light switch box to the outlet. How do i go about doing this without rewiring everything. Next mount the faceplate over the outlet and secure it with the small flathead screw. Find the outgoing that runs to the outlet and connect it directly to the feed along with a short piece of wire and connect these three with a wire nut. In any case when you replace an old outlet check to see whether the tabs are removed and if so break off the tabs on your new outlet to match. I assume that your light and outlet are tied together because you said separate them so that means the main supply hot wire is either in the switch or outlet in either case it should be easy without running any wires just reconfigure what you have so power is direct to outlet and light bulb gets power through switch.
With the outlet in place use the two included screws to affix the outlet to the junction box. Alright i have a regular wall light switch an overhead light and two wall outlets each with two plugs within the outlet. If you confirm that the power source runs through the switch box you will not be able to separate the light and the outlet without running a new wire someplace. Electrical outlet wiring wiring electrical outlet for the home home electrical wiring includes 110 volt outlets which are. Mike a homeowner from dante south dakota. Thanks for your electrical wiring question mike.
The power must be coming into the light switch box first and then continue on to the light fixture.
