How to install a light bar. Httpsamznto33rf4mq used in this video auxbeam led light bar wiring harness.
Carling Technologies Contura Led Backlit Rocker Switch Led Lightbar
How to wire light bar to switch. Vivid light bars 102 views. Just like the genuine led light bar optional accessory from mitsubishi dealers the installation of an led light bar in combination with the nudge bar will reduce the front camera view where fitted. Httpsamznto2b41h1x used in this video auxbeam 22 straight led light. When wiring led light bar relays or switches fuse all positive side wires such as from the positive battery terminal to the light bar switch. Auxbeam 32 curved led light bar. Braxen mcconnell 31143 views.
Set the switch in place. New arrival 2020 new brand 110w brightest 9005 led headlight bulb 5400 lm unit one duration. Using 16 copper wire 2 lead per lead up to 160 watt load capacitydesigned for any size led light podcube driving light within totally 320w. To avoid shorting it remove the wire of the ground. Skip this step if you will be using both sets of terminals. How to install led light bar step 1.
First disconnect your car battery. The beauty of this switch is that it can handle up to 20 amps without the need to wire an additional relay. After prepping mount your light bar. How to install offroad led light bar w relay switch step 1. It is important to consider sturdiness when. One to two 12v 40a wiring harness 2leads with onoff rocker switch and easy to install helpful for our customers to refit their vehicle.

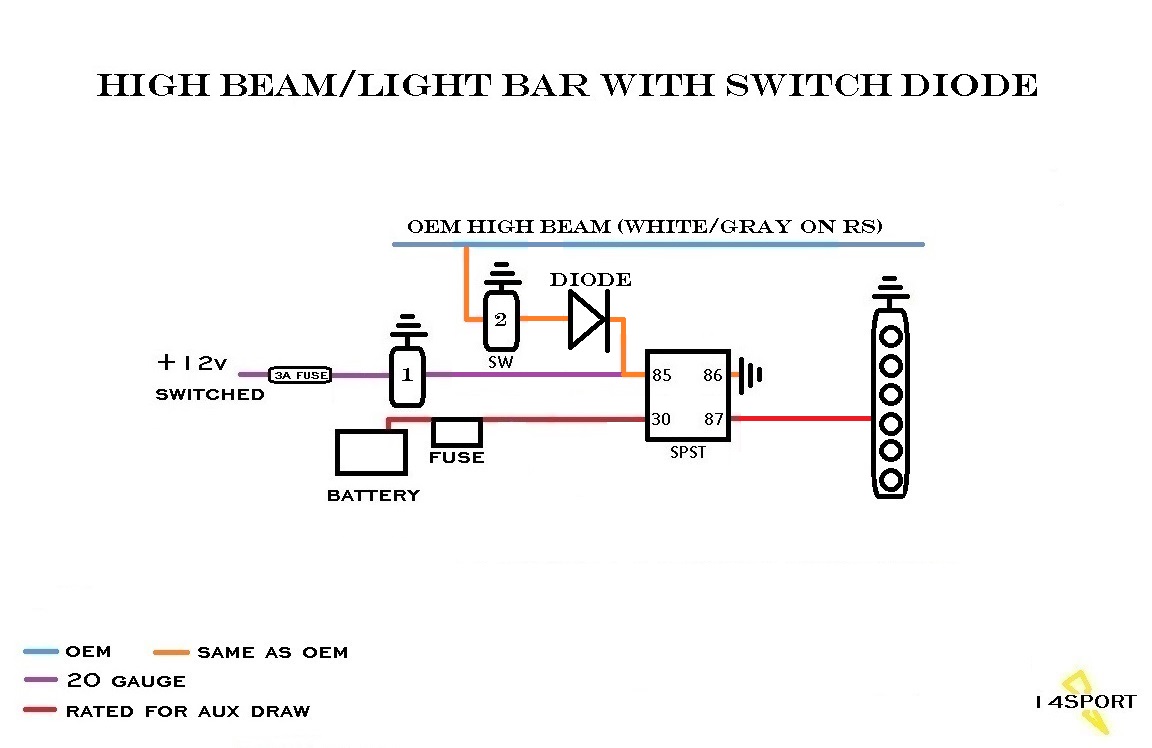

Before you get started you can refer to this wiring map so you have a point of reference. In this case that would be the light bars maximum current. The ultimate finishing touch to any professional install our mitsubishi specific switches will fit directly into the factory switch blanks of your mq or mr triton. Oem style light bar switch install toyota 4runner duration. I will wire it so that the led light bar indicator at the bottom of the switch lights up. 32 auxbeam hidden light bar install on 2009 tacoma duration.
Set up the led light bar. I go though every step so after watching this you will know how. 40a power relay and with inline blade fuse for multiple safety protectionit is 2 lead that with 2 lights output connectionit can hook with 1 heavy duty off road led light bar below 200w or two small. In this episode of project night light i show you how to wire an led light bar properly using a relay. The fuse rating should not correspond to the wire size but instead to the maximum current expected on that wire. Disable the terminals of the shorter output wires.
