Incorrect positioning of a bilge pump can lead to the pump running without picking up any water and therefore draining your battery possibly resulting in the boat sinking. The bg one was developed in collaboration with the marine industry needing a reliable long lasting bilge pump switch.
Boat Yachs All About Bilge Pumps Pump Installation

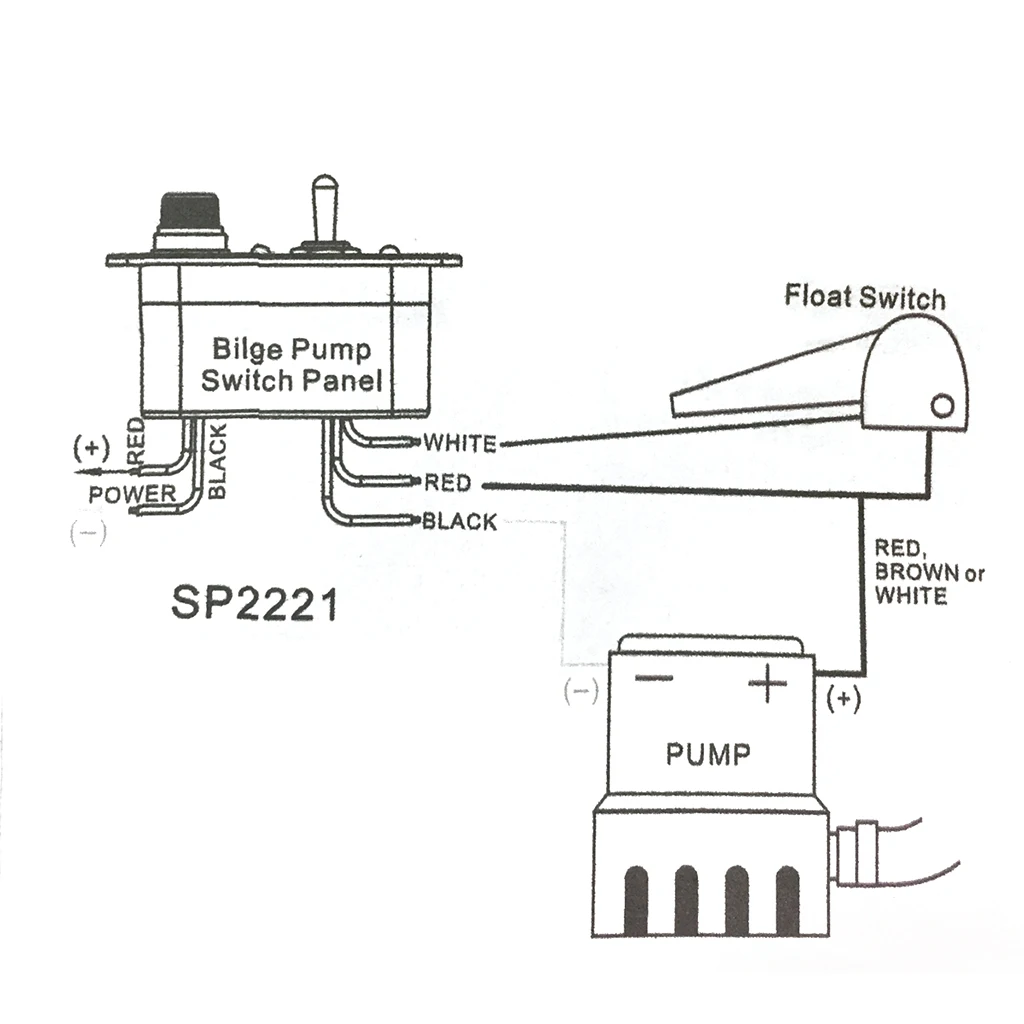

How to hook up a bilge pump float switch. Run the wiring from the float switch to the current manual bilge pump control switch. Now believe that i understand what was happening as i think the toggle switch for on for the bilge pump was back feeding power to that pin. The pump also has 3 wires. But still the bilge pump is not working. Crimp on step down butt connectors will assure a good. Connect one on one with 0.
Dont skimp on wire size. It is essential to get the pump wiring out of the bilge as quickly as possible. The boat had three wires. Mount the bilge pump securely in the bilge. Black brown and brown with a red stripe. I just wired it up but the new pumps auto feature isnt working either.
Surprisingly i found both pins had 12v to ground. Run the wires up and secure them so that they do not sag into the bilge water. The bg one smart bilge pump switch with oil and fuel detector integrates with the bilge pump system to selectively pump out water and not oil or fuel preventing the vessel from accumulating water and aiding in the prevention of costly oil or fuel spills. Question about bilge pump functionality. Use butt connectors and heat shrink. Having no moving parts or float switches that can easily be damaged the bg one will automatically turn off the bilge.
Also verified that there was 12v coming into the plug that connects to float. For this reason it is. Try to run the wiring in an area where it is out of the way for example through the bilge but avoid running it through an area where it will be continuously wet. A 3500 gph pump will draw 15 amps typically necessitating 10 gauge or maybe even 8 gauge wire. Manual auto bilge switch a manual auto bilge switch is an a b switch with a center off position. With a manual bilge switch our recommended way the float switch is always connected straight to the battery via a fuse.
Seems the float is not working as i checked it for continuity but i jumped through the plug that the float connects to and still not working. My last boat had a rocker switch on the dash if you. Replace the current bilge pump manual switch with a three way switch. The previous auto feature didnt work so i bought a new pump. Hi all im installing a new automatic bilge pump in my 1999 sslxi. Consult the abyc wire size table to determine the appropriate wire for your pump and length of wire run.
At that point it has a float switch and will only run if water fills up in the bilge. Unrestrained bilge pumps can fall over intake air and become damaged. It cannot be turned off by the helm bilge switch. 2 fasten the bilge pump with brackets or use epoxy to attach bolts to the bilge bottom which then serve as mounting studs. Am i correctthe bilge pump needs to be turned on powered by the rocker switch on the dash.
