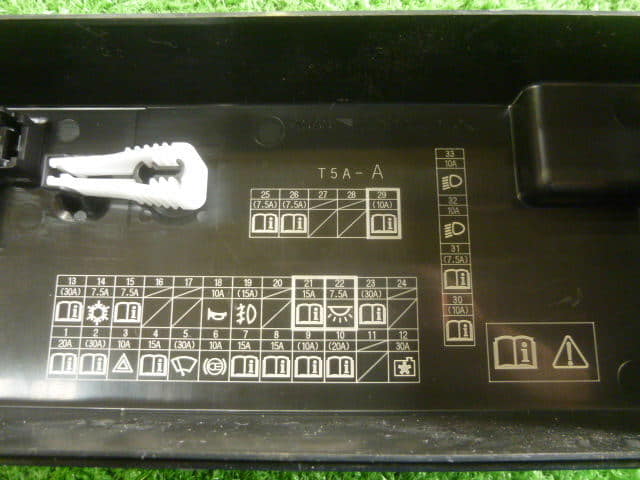

2015 2016 engine compartment fuse box a number circuit protected ampere rating a 1 headlight low beam main 20 2 cdc 30 3 hazard 10 4 dbw 15 5 wiper 30 6 stop 10 7 igp 15 8 ig coil 15 9 ecp. Fuse locations are shown on the fuse box cover.
Honda Fit 2007 Fuse Box 30562440 646 11432
Honda fit fuse box. Honda fit 2015 2016 fuse box diagram year of production. For honda jazzfit 2001 2002 2003 2004 2005 2006 2007 2008 model year. Fuse box in engine compartment. If your fit has many options like a sunroof navigation heated seats etc the more fuses it has. If your fit has many options like a sunroof navigation heated seats etc the more fuses it has. To access it remove the tray by turning the dial counterclockwise then pulling it toward you.
If any electrical devices are not working turn the ignition switch to lock 0 and check to see if any applicable fuse is blown. Fuses and relay honda jazz fit. To open it push the tabs as shown. Some hondas have multiple interior fuse boxes including in the trunk the video above will show you where the interior fuse box of your 2010 fit is located. Locate the fuse in question by the fuse number and box cover number. Honda fit 2009 2010 fuse box diagram year of production.
The interior fuse box is behind the drivers coin tray. The primary under hood fuse box is in the engine compartment on the drivers side. Fuse layout honda fit 2009 2014 cigar lighter power outlet fuse in the honda fit is the fuse 13 in the instrument panel fuse box. Fuse layout honda fit 2015 2019 cigar lighter power outlet fuses in the honda fit are the fuses 17 console acc socket 36 front acc socket in the instrument panel fuse box a and fuse 10 console acc socket in the instrument panel fuse box b. To install the coin tray line up the tabs on the bottom pivot the tray up to engage its side clips then turn the dial clockwise. If your fit has many options like a sunroof navigation heated seats etc the more fuses it has.
Some hondas have multiple interior fuse boxes including in the trunk the video above will show you where the interior fuse box of your 2015 fit is located. 2009 2010 interior fuse box number ampere rating a circuits protected 1 10 back up 2 75 tpms 3 20 drivers power window 4 not used 5 10 back up light 6 10 srs 7 10 transmission sol 8 8 srs 9. And right hand drive. Some hondas have multiple interior fuse boxes including in the trunk the video above will show you where the interior fuse box of your 2008 fit is located.
