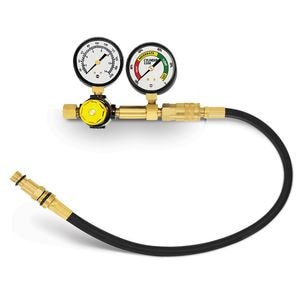

Diesel leak down tester. An engine leakdown test is a compression test in reverse. Pressurized air is supplied to each cylinder and in moments displays a rate of leakage measure from 0 to 100. The compression tester inserts into the spark plug hole for each of the cylinders to be tested. One gauge on the tester measures the pressure of the air entering the cylinder and the other measures the percentage of the air escaping or leaking from the cylinder. The dual 2 12 gauges read 0 100 psi and 0 700 kpa and feature chrome bezels and rugged protective outer boots. Unplug the coil wire from the.
Leak down tests on diesels in aircraft the leak down test is used because you dont want to stand next to a spinning prop doing a compression test. A cylinder leak down test requires the removal of all the spark plugs. This cylinder leak down tester gauges leak down tests more accurately than standard compression tests. Compressed air 80 to 90 psi is then fed into the cylinder. Unlike a compression test a leak down tester has two gauges and requires a compressed air source. Like a compression test a leak down test is accomplished by replacing a spark plug with the tester hose.
Featuring a quick connect adapter gauge and a thumb button air release this compression tester comes with adapters for gm ford lincoln isuzu mercedes benz kubota toyota volkswagen peugeot. Check compression on most domestic and foreign diesel engines this compression tester reads pressure from 0 1000 psi. 10 millimeters and 14 millimeters thread adapters dual 2 12 inch chrome bezel gauges and rugged protective outer shell pressure regulated manifold with quick couplers and all comes with an easy to open blow molded hard case for storage. Instead of measuring the engines ability to create pressure compressed air is introduced into the cylinder through the spark plug hole. Product description otcs 5609 cylinder leakage tester kit quickly diagnoses internal engine problems like bad rings valves and leaking head gaskets and comes complete with adapters for most applications. A cylinder leak down test takes more time to perform.
Leak down is the percentage of compression that is lost by the engine and every engine has some. The performance tool w89729 leak down test kit can quickly diagnose internal engine problems such as bad rings valves and leaking head gaskets. But can give you a more accurate and detailed picture of the engines overall health. Test the engine at operating temperature for the best results.
