There is no indication whether the 75a relay has a diode and i can not take the relay apart to see if there is a diode as i would have to destroy the casing. Placing a diode across a relay coil passes the back electro magnetic field and its current through the diode when the relay is energized as the back emf drives the flyback protection diode in forward bias.

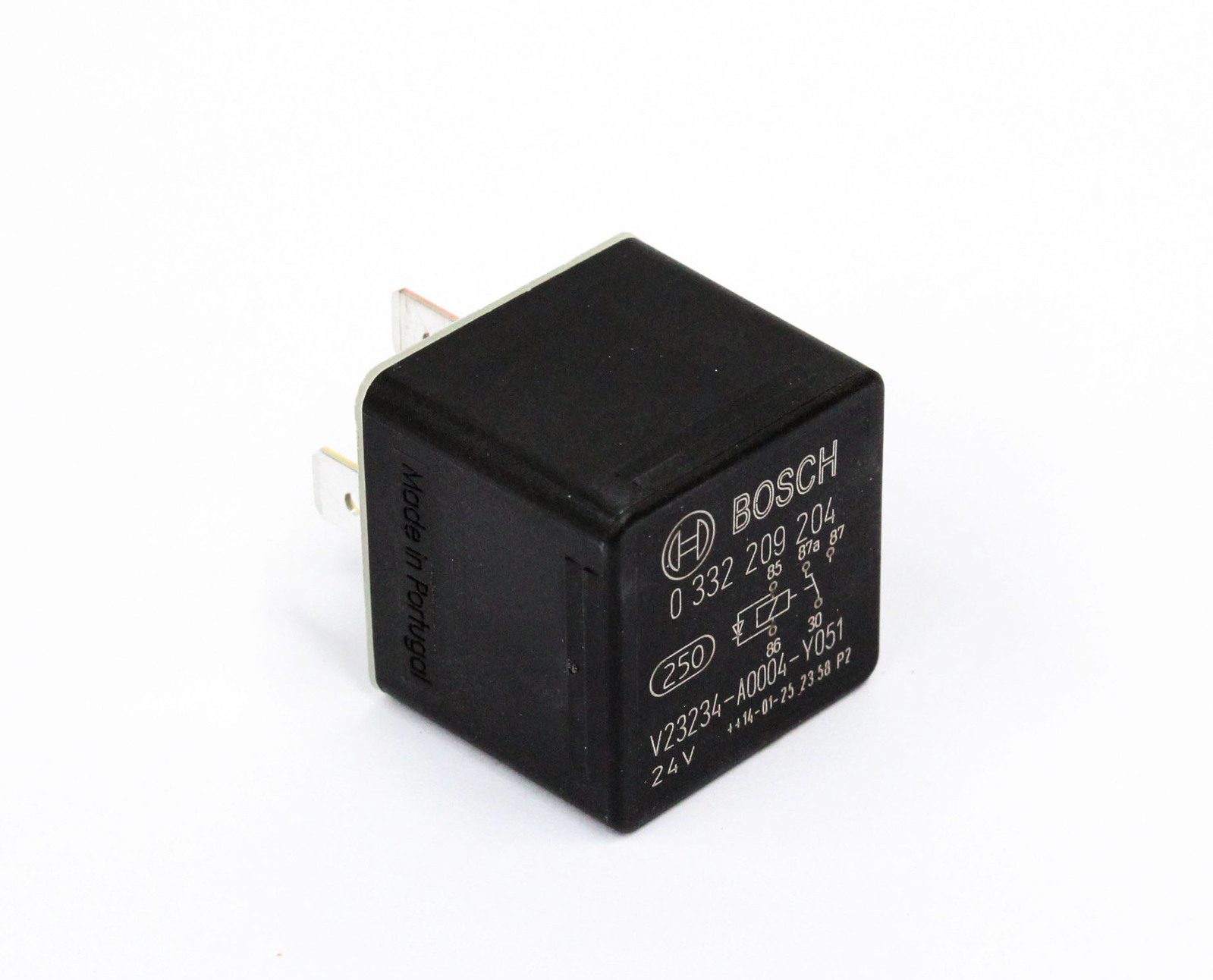

Details About Bosch Mini Relay 24 Volt 5 Pin Change Over 20 10a Diode Protected 0332209204
Bosch relay with diode. The tycobosh relays have a rating stamped on the cover that is based on switching 30 amps for over 250000. The diode will limit the voltage drop in one direction. 1 i wanted to check if my bosch 75 amp relay had a diode because from information i acquired on line it seems that only the 30 and 40 amp bosch relays have diodes. If you get less than 1 v both ways use a smaller resistor and repeat until you do get over 1 v in one direction. Briefly connect this to the relay coil in each direction and measure the voltage accross the coil. I thought that if a diode was across the low voltage coil windings of the 85 and 86 terminals that they would be polar sensitive.
Standard relay 12v 40 amp spst w diode bracket mount 1 each five 14 push on terminals resistor in parallel to the coil diode tyco pn v23234 c1008 x008 bosh pn 0 332 019 155 note. 50 out of 5 stars 3. The diode again becomes forward biased. Quick application guide 1 l with mounting brackets o without mounting brackets 2 s make contact w changeover contact ö break contact 3 r resistance parallel to the coil d diode o without component v mounted w kl b changeover contact compact design 0 1020 30 40 50 60 70 80 90 100 01 nominal load. Quick application guide bosch relays. Free shipping for many products.
Find many great new used options and get the best deals for boschtyco relay spst 12volt30amp with diode bracket at the best online prices at ebay. Changeover contact compact design 0 1020 30 40 50 60 70 80 90 100 01 nominal load range of the different relay types micro power type 1 power type 2 mini product number voltage current brackets1 type2 component3 circuit diagram. When voltage is removed from terminals 8586 and the coil is de energised the magnetic field that has been created around the coil collapses rapidly. This collapse causes a voltage across the coil in the opposite direction to the voltage that created it 12v and since the collapse is so rapid the voltages generated can be in the order of several hundred volts although very low current. X2 pc792a 1c c1 12s dn x 2 5 pin bosch style spdt 12 vdc coil 4030 amp switching mini iso sealed automotive plug in relay with plastic mtg bracket and diode cross. Bosch relay guide 15 pdf drive search and download pdf files for free.
The freewheeling diode allows current to pass with minimal resistance and prevents flyback voltage. These high voltages can damage sensitive electronic devices. If you get over 1 v in one orientation and under 1 v in the other then the diode is working. 99 750item get it as soon. Use a 12 v supply can be the 12 v from your car with about 200 ω in series. When the power supply is removed the voltage polarity on the coil is inverted and a current loop forms between the relay coil and protection diode.
Quick application guide 1 l with mounting brackets o without mounting brackets 2 s make contact w changeover contact ö break contact 3 r resistance parallel to the coil d diode o without component v mounted w kl. Relay with diode across the coil. Bosch relay guide bosch relay guide bosch relays. 99 900item get it as soon as wed jul 8 x2 pc792a 1c c3 24s dn x 2 5 pin bosch style spdt 24 vdc coil 4030 amp switching mini iso sealed automotive plug in relay with waterproof case with metal mtg. Such that the coil would only activate.
