On my car the fuse was fine however the ac relay was sticking and a swift tap from a flashlight would. If your cr v is experiencing electrical problems you should always check the fuses first because they are relatively easy to check and cheap to change.
2009 Honda Cr V Fuse Box Diagram Crvtyu Down8 Zografisch Nl

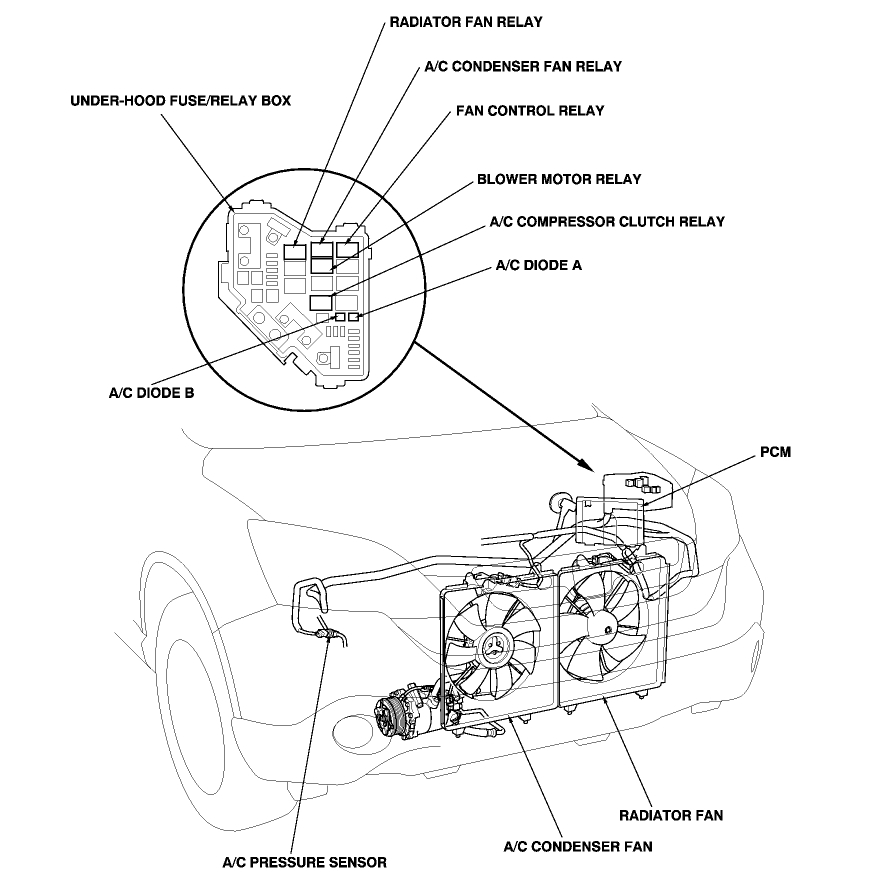

2009 honda crv ac fuse location. If your ac is not properly cooling. In order for your ac system to work on your honda cr v there are a number of relays and fuses that have to be operable. Honda designs and manufactures a wide range of vehicles. The compressor is the unit that cools the air before it enters into the hondas cabin. Honda accord 24l 2003 to 2007 ac compressor wiring diagram. Some hondas have multiple interior fuse boxes including in the trunk the video above will show you where the interior fuse box of your 2009 cr v is located.
2007 2008 2009 interior fuse box number ampere rating a circuits protected 1 75 power window relay 2 15 fuel pump 3 10 acg 4 75 absvsa 5 15 heated seats 6 20 front fog lights 7 not used 8 10 rear. For the honda cr v 2007 2008 2009 2010 2011 2012 model year. Fuses and relay honda cr v 2007 2012. Honda accord 2009 ac fuse and relay duration. Many of hondas vehicles are equipped with air conditioner units. Ya allows to send only one attachment so i included only one of the three wiring diagrams for the hvac system on your 2009 cr v.
Fuse box in passenger compartment. Honda cr v 2007 2009 fuse box diagram year of production. The fuse label is attached under the steering column. The interior fuse box is located under the dashboard on the drivers side. Hoda crv ac dont work check ac fuse and relay rb the mechanic. The ac compressor clutch is the power feed to your ac compressor.
Using a 2009 honda accord i show you the location of both the ac clutch relay and fuse. This came directly out of the factory manual. There are fuses sensors relays switches diodes etc. Using a 2002 honda crv i point out to you the location of the ac.
