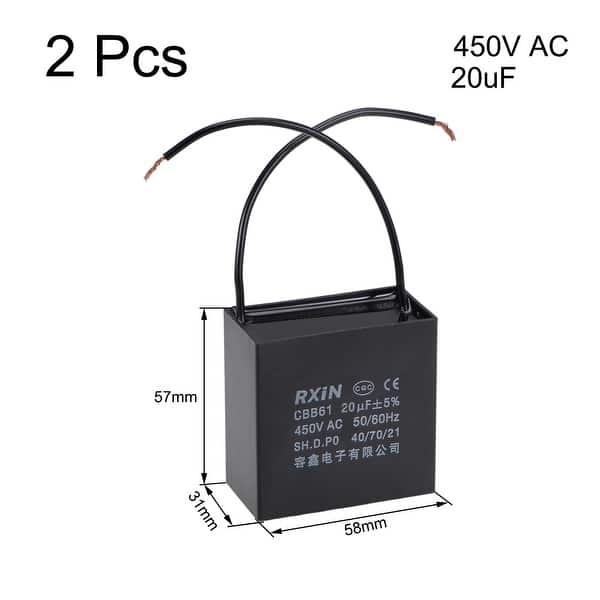

Icquanzx Ceiling Fan Capacitor Capacitor 2 Wire For Cbb61 Wall Fan Motor Run Capacitor 4uf 450v 50 60 Hz 3 Pack
Running wire for ceiling fan. In addition your light fixture may require mounting to a ceiling joist or to two short blocks nailed. There should be a white copper or green and black wire coming out of the ceilings electrical box. Running electrical wire through the channel between ceiling joists is generally easiest. Pro tool reviews gives you a visual guide and step by step instructions on making the best connections for your particular ceiling fan installationon a scale of 1 10 the level of difficulty on this project is a 5 though it can be more complex if you include the ancillary projects such as running. The ground wire carries displaced electricity away to reduce the risk of electrical shock if lets say the metal parts of the ceiling fan or any other appliance or part attached to your electrical system becomes accidentally charged with electricity. Notice this circuit has a 3 wire cable power source coming into the double switch box.
Connect the black wire from the 14 2 to the black wire from the 14 3 cable. Tuck the wires back into the box. Turn the power back on and test the fan. Connect the red black white and bare fan wires to like colored circuit wires. Wiring a ceiling fan and light can seem like a daunting task but it doesnt have to be. Many people will opt to let a professional do the job for them.
Then leaving the double switch box is a 3 wire cable going to the ceiling fan and a 4 wire cable going to the other 3 way switch. This could be dome using an extension cord however an adapted would be required for the connections to the ceiling fan and the fan blades should be removed to keep the cord clear. Make connections as shown. I hope this helps to troubleshoot this ceiling fan problem. The white wire is your neutral wire the copper wire is the grounded wire and the black wire powers the fan. Electrical wiring can be tricky if you do not know what you are doing.
Connect white wires together. Connect the greencopper wires together. Then a 3 wire cable from there also going to the ceiling fan. Hang the ceiling fanlight from the fan box following the instructions that came with your fan kit. Connect the white wire that is taped black from the 14 3 cable to the black wire from the fan. Connect the white wire from the fan to the white wire from the 14 2 power supply cable.
Connect the lighting wire typically blue to the black fan wire and the black ceiling wire. So if you wire your fan without the ground wire it will still work properly. Connect black wires together. Connect the red wire to the blue or gray one from the fan. Installing a ceiling fan without existing wiring means you will need to run cables to connect it to a power source.
